  • Mobile column truck lift – LKW Hebebühne
  • Constructed with an extremely strong and robust technology
  • Wireless control
  • Can be connected with several lift columns up to 88 tons
  • Hydraulic lift
  • Built-in battery/charger
  • TÜV – CE (EN1493) approved

Only Export

€ 17.600,- EX. VAT

Request a quote including shipping

0,00 kr. inkl. moms

0,00 kr. ekskl. moms

Varenummer (SKU): LDK55SW/22-1 Kategori:

Mobile column vehicle Truck Lift | LKW Hebebühne

Press for Danish version

Delivery time 3-6 days

Lonet.dk now presents the hydraulic mobile truck lift.

The lift consists of 4 columns, which together have a lifting capacity of 22 tonnes and is an ideal truck lift where space is limited

The fast lifting speed of 2 cm per second is characteristic of this technology.

The truck lift is easy to move and can be used anywhere with solid, firm ground.

With microprocessor and proprietary software for synchronous and smooth lifting and lowering of the heaviest vehicles, even if the load is unevenly distributed.

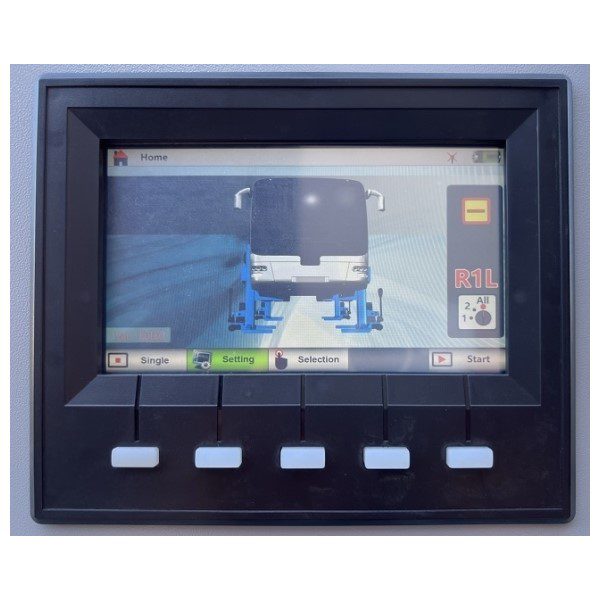

All system parameters including lift height and remaining battery charge for each column are continuously displayed in each lift column.

This mobile truck lift system can be combined with 2, 4, 6, 8......16 columns and each column can be raised or lowered individually, in pairs or all columns together.

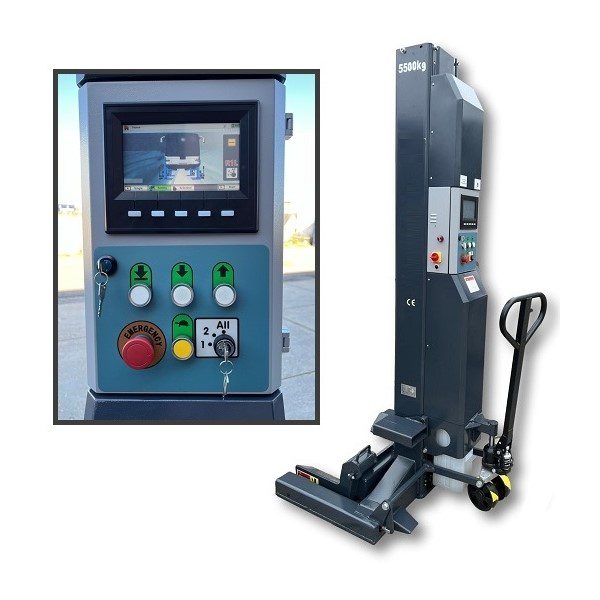

All lifting columns are equipped with a controller with LCD display, a 24V hydraulic pump unit, 2 rechargeable batteries and a charger. It is therefore possible to start with 4 lifting columns and add 2 or 4 extra lifting columns later. Each lifting column is autonomous - can be combined and extended as desired.

  • CE (EN1493) approved
  • Low maintenance - Robust hydraulic technology
  • Wireless and battery powered
  • 24 V electric hydraulics
  • Can be expanded with a further 2-4-6-8...... 16 columns

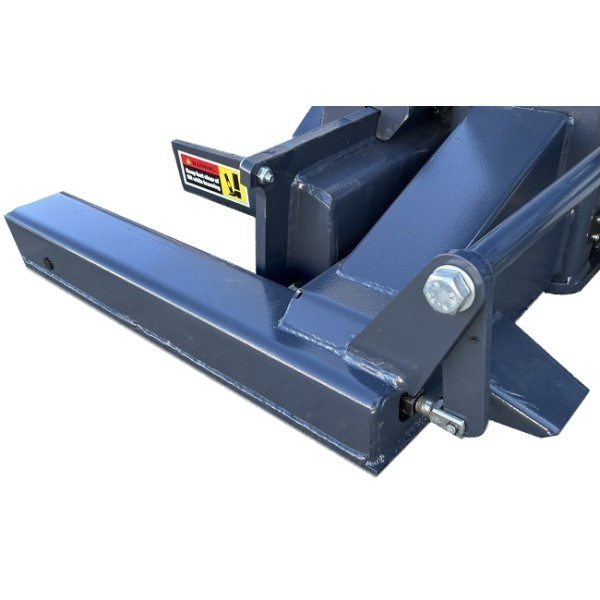

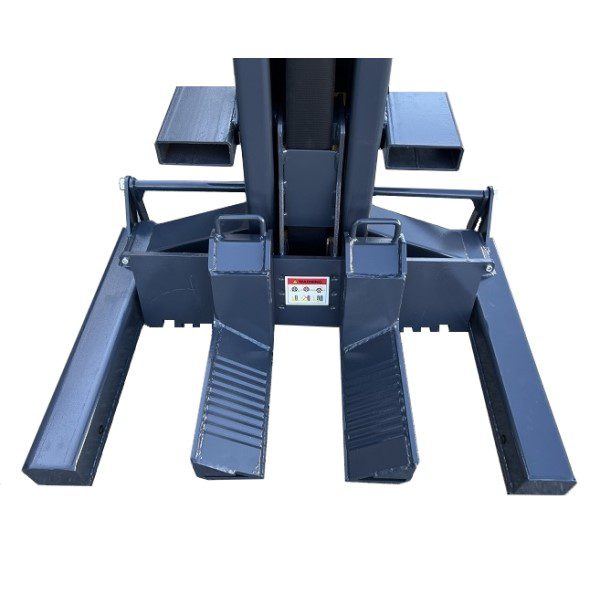

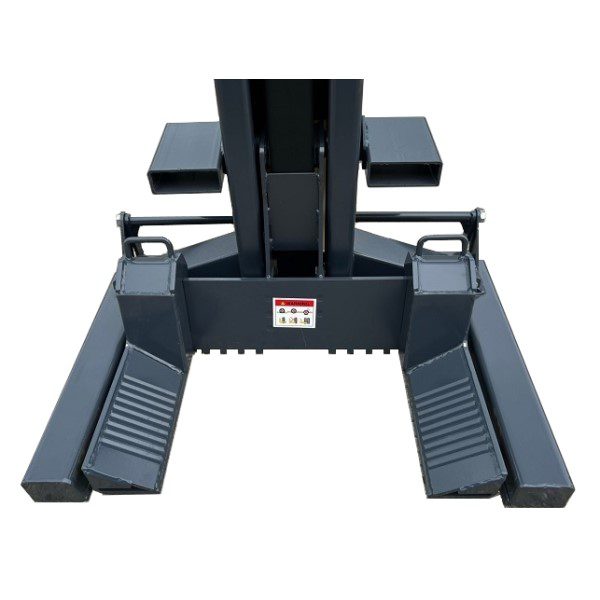

  • Adjustable forks - can be adjusted to individual wheel sizes
  • Continuous display of remaining battery charge
  • Locking and slow lowering functions
  • Switch to single-pair operation of all columns on each column
  • Each lifting column contains two DC 24V batteries and a battery charger (230V)
  • Powerful guide bearings and a safety lock in each lifting column
  • Procedure for lowering the lift in the event of a power cut with integrated hand pump
  • Automatic mechanical safety lock every 3.5 cm with electromagnetic release
  • Hydraulic check valves prevent sudden lowering in case of leakage or damage to the hydraulic system
  • Includes a self-calibration and self-diagnostic trouble code system
  • All columns stop immediately if errors are detected
  • Simple, robust and low maintenance technology

Need a more powerful truck lift? - Then have a look at the Mobile column vehicle Truck Lift 30.000 kg LDK75HW/30 - See more here

Need a more powerful truck lift? - Then have a look at the Mobile column vehicle Truck Lift 34.000 kg LDK85HW/34 - See more here

Ideal auxiliary tool is i.a. axle support / trestle for truck - This frees up the individual lift, you can work freely on wheel bearings, brakes etc. SEE MORE UNDER THE TAB: ADDITIONAL ACCESSORIES - Here are more axle supports, among other things, Cross boom 11T, as well as Ramps for forklifts

We have a larger selection of truck lifts and truck tire machines.
Please take a look at our webshop.
We are working on getting more products translated on the site into English and German.
If you find something of interest, please contact us

Technical data

Lifting capacity (4x5500 kg)
22000 kg
Pr. column
5500 kg
Engine power/Hydraulic pump
2,2 kW / 24V
Adjustable between lifting forks
16,6 - 85 cm
Wheel diameter
33 - 115,6 cm
Lifting height
0-1800 mm.
Lift time to peak (average)
<= 85 sec.
Lift time (average)
<= 2 cm / sec.
Number of batteries per column
2 stk. / 24V DC
Battery capacity
25 x op og ned
Electrical connection
230V/50 Hz
Dimension per column
L132,8 x B111 x H237 cm
Own weight (4x500kg)
2000 kg
RAL 7016

Delivery scope     seemore

  • 4 pcs. complete mobil lift columns incl. oil
  • Use and installation instructions
  • Approval and CE certificate
